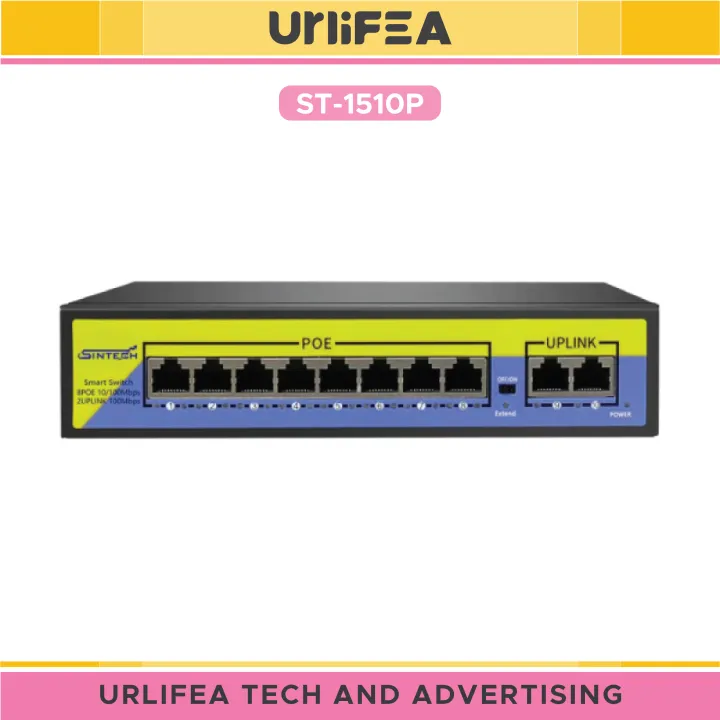

Product details of Sintech 10 Ports Smart POE Switch (8+2) (ST-1510P)
- Product: 8+2 Port 250m POE Switch
- POE Port: 1 to 8 support IEEE802.3AF/AT Standard
- Output Power: 15.4W/30W IEEE802.3af/at
- Power Pin: Both 1/2+,3/6- and 4/5+7/8-
- Whole Power: ≤120W (52V 2.3A)
- POE Protocol: IEEE 802.3af/IEEE 802.3at
- POE Type: End-span
- Power Distance: ≤250m
- Network Standard: IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
- Network Medium: 10/100BASE-TX:5 class and above non shielded twisted pair
- Data Distance: ≤250m
- Switch Capability: 2Gbps
- Forwarding Mode: Store and forward
- Forwarding Rate: 10BASE-T:14880PPS/port or 100BASE-tx:14800pps/port
- MAC Address: MAC address table 1K
- Port Function: Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
- LED Indicator: LINK/ACT.100Mbps; POE Status Indicator; Power indicator; Extender
- Working Environment: Working temperature:-10°– 55°C
- Weight: 0.95kg
- Size: 197mm*75mm*30mm(L*W*H)
