Description
Video Intercom Door Station

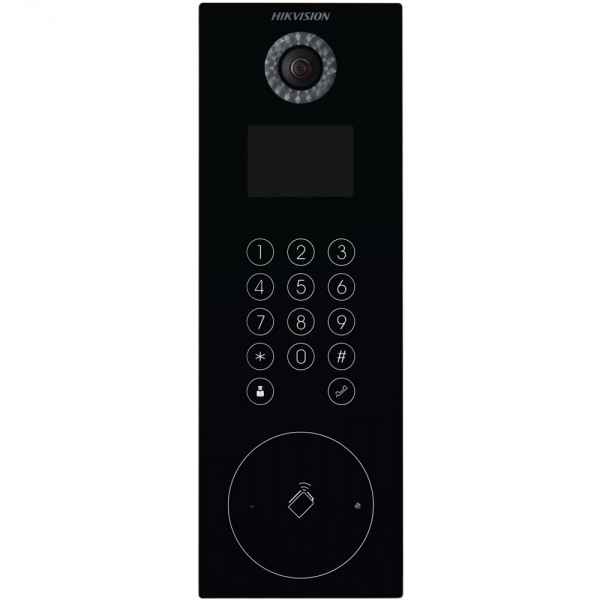

The DS-KD8102-V is a door entry station with a video intercom from Hikvision. Using this outdoor station you can manage up to 2000 indoor stations and control entrance/exit to your building. This door intercom allows callers from different intercoms to see and speak to each other in real time with a camera and speaker/microphone on either end. The display screen has a resolution of 480 x 320 pixels and a touch keypad, plus a card reader so you can set up your system with access cards and PIN codes. This door station comes with a built-in microphone and loudspeaker for easy communication between stations.
- Video intercom function
- Access control function
- Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards (This function will be invalid if the card has been issued via the client.)
- Card readers supported
- Self-adaptive visible light supplement
- HD video surveillance with high performance CMOS
- Noise suppression and echo cancellation
- H.264 video compression
- Low illumination
- Remote unlocking via the client or the app
- Remotely answering the call via the client or the app
- Tampering alarm and door magnetic alarm supported
- Auto-uploads alarm messages to master station or the client once the duress code is entered to open the door
Specifications Hikvision DS-KD8102-V
| Doorphone / Display Size | 3.5“ |
| Display resolution | 480 × 320 |
| Doorphone Resolution | 1.3MP |
| Doorphone / Viewing angle | 120° |
| Doorphone / Network | Ethernet |
| Doorphone / Power | 12 VDC |
| Doorphone / Protection Level | IP65 |
| Doorphone / Alarm Input | 8 |
| Doorphone / Alarm Output | 4 |
| Doorphone / Keyboard | Touch Button |
| Reader | IC Card Reader |
